60–200 mmCam-lockWall
Cam-lock wall panel (cold room)
- PUF core
- Cam-lock
Transport extraFlashing as per requirement
Multi-brand PUF & PIR panel store
Every PUF panel. Every brand. One quote.
Continuous and cam-lock panels for walls and roofs, 30 to 200 mm, cut to size and dispatched anywhere in India.
Transport extraFlashing as per your requirement
Now showing: Continuous wall panels- 30–200 mmPUF / PIR core thickness
- Up to ~12 mcut to length per panel
- 1000–1200 mmtypical cover width
- PAN Indiadispatch arranged · transport extra
Rate finder
Three taps to today’s rate.
Tell us what you are building, the thickness and your city. We price the same panel across the brands available for your site and call you back.
- Whatcold room, roof, clean room or cabin
- How thick30–200 mm, typical pick marked
- Wherecity or pincode, for the transport quote
BNAL · All India · effective 06 Oct 2026
Today’s prices, published.
BNAL’s wall and roof panels, per sq m, exactly as listed. Ex-works; GST and transport extra.
See the full price listWallAEROCLAD - DG · 50 mm0.3 mm₹1,255/sq m0.5 mm₹1,595/sq mRoofAEROROOF · 50 mm0.3 mm₹1,370/sq m0.5 mm₹1,730/sq m
Sheet thickness on both faces, PPGL · ₹ per sq m · ex-works · GST extra · transport extra · flashing as per your requirement
Panels for every job
Continuous and cam-lock, wall and roof. Typical specs on every card, and the same panel priced across brands when you ask.
60–200 mm
60–200 mmCam-lockCeiling / roof
Cam-lock ceiling / roof panel
- PUF core
- Cam-lock
Transport extraFlashing as per requirement
30–150 mmContinuousWall
Continuous wall panel (T&G)
- PUF core
- Tongue & groove
Transport extraFlashing as per requirement
30–100 mmContinuousRoof
Continuous roof panel (trapezoidal)
- PUF core
- Lapped crest
Transport extraFlashing as per requirement
50–150 mmContinuousWall · roof
PIR fire-retardant panel
- PIR core
- Tongue & groove
Transport extraFlashing as per requirement
60–150 mm
50–100 mmContinuousWall · roof
Clean-room panel
- PUF / PIR / rockwool core
- Flush T&G
Transport extraFlashing as per requirement
80–150 mmContinuousWall · roof
Cold-storage (large chamber) panel
- PUF core
- Tongue & groove
Transport extraFlashing as per requirement
40–60 mmContinuousWall · roof
Prefab cabin panel
- PUF core
- Tongue & groove
Transport extraFlashing as per requirement
Two families
Continuous or cam-lock?
Both are PUF sandwich panels. They are made differently, join differently and suit different buildings. Both come as wall and roof panels.
Made on a line, cut to length
- How it is made
- Continuous lamination line: steel coils, foam and curing in one moving process
- Joint
- Tongue & groove; screw-fixed or hidden-fix
- Typical thickness
- 30–150 mm
- Length
- Cut to length, up to ~12 m (transport-limited)
- Wall and roof
- Wall (flat or micro-rib) and roof (trapezoidal, 3–5 ribs)
- Best for
- Warehouses, factories, sheds, prefab, clean rooms, large cold stores
- Install speed
- Fast on a steel frame: long panels, few joints
Pressed in batches, locked with a key
- How it is made
- Discontinuous (batch) press: each panel foamed in a mould, cam-lock hooks foamed into the edges
- Joint
- Cam-lock hooks + T&G profile, locked with a hex key
- Typical thickness
- 60–200 mm
- Length
- Made to room height or span
- Wall and roof
- Wall and ceiling of the cold room
- Best for
- Cold rooms, freezers, ripening chambers, pharma cold stores
- Install speed
- Fast, frameless box: lock, seal, done; demountable
All figures typical; varies by brand. Joint drawings are illustrations, not to scale.
Which one do I need?
Pick what you are building.
Recommended familyCam‑lock
A frameless, airtight box: walls and ceiling lock together with a hex key, and the room can be taken apart later. 80–150 mm typical.
Cam-lock wall panel Typical; varies by project and brand. We confirm it with your drawing.Inside every panel
Three layers. One rigid slab.
Continuous roof panel
Trapezoidal top skin (typically 3–5 ribs), PUF core, liner below. Cut to the roof length on the line, up to ~12 m.
Edge joint: tongue & grooveSee the panelScroll to take it apart
- Trapezoidal top skinPPGI / PPGL steel · 0.35–0.8 mm
- PUF / PIR core38–42 kg/m³ · k ≈ 0.022 W/m·K
- Liner skinPPGI / PPGL steel · 0.35–0.8 mm
Typical; varies by brand
Cam-lock joint
Turn the key. The joint pulls tight.
A hook foamed into one panel edge catches the pin in the next; a turn of the hex key draws the two panels together, with no screws through the face. Typical for cold-room panels; details vary by brand.

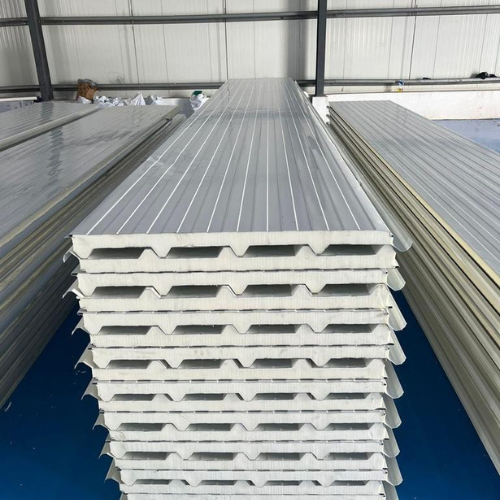

Cut to length, up to ~12 m.
Every panel is cut at the plant to your wall height or roof span, so there is less waste and fewer joints on site. Typical; varies by brand.

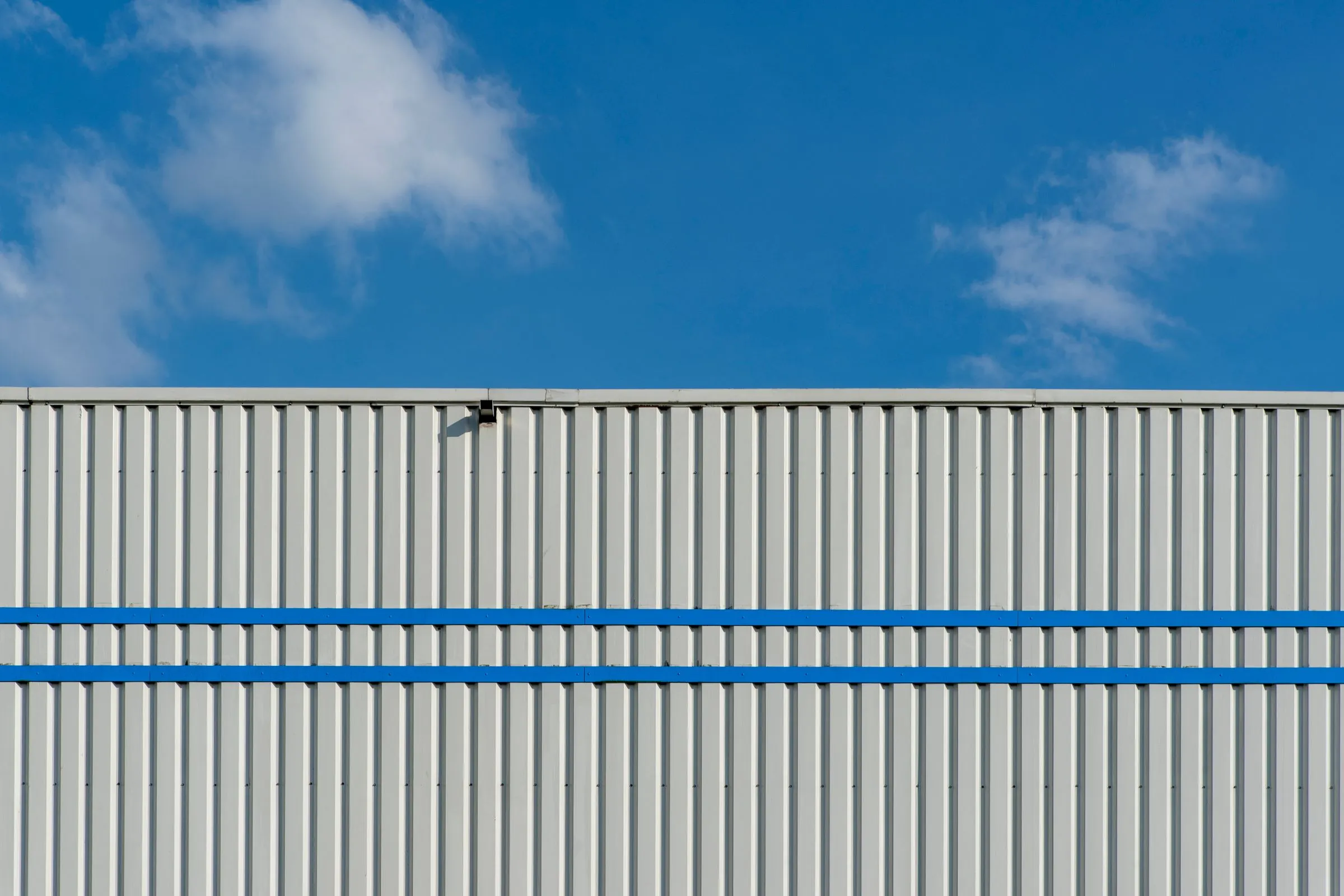

Representative stock photo: profiled panel wallWhat are you building?
+2 °C to −25 °CCold storage
4 panel types · 80–150 mm (typical)
+14 °C to +25 °C, high humidityMushroom farms
3 panel types · 60–80 mm (typical)
+12 °C to +20 °C, ethyleneRipening chambers
2 panel types · 80–100 mm (typical)
Controlled, +15 °C to +25 °C typicalPharma & clean rooms
3 panel types · 50–80 mm (typical)
Ambient: heat controlWarehouses & industrial sheds
3 panel types · 30–60 mm (typical, ambient)
Ambient: comfortPrefab site offices & cabins
3 panel types · 40–60 mm (typical)
Ambient to −25 °CFood processing
4 panel types · 60–200 mm (by zone)
30–200 mmNot sure? Thickness guide
Temperature to thickness, in one chart
Thickness picker
Which thickness for your room?
Pick the room temperature. The card shows the typical thickness and how much heat gets through.
Core thickness
100mm
U-value (calculated)
0.21W/m²K
What temperature is the room?
- Heat through each m² at a 30 °C difference
- 6.4 W
- Typical for chiller
- 80–100 mm
Transport extraFlashing as per your requirement
U = 1 / (0.13 + d/0.022 + 0.04), core only, k ≈ 0.022 W/mK (typical; varies by brand). Typical uses: Dairy, fruit and vegetables, flowers, vaccines.
Brands
All brands One spec. Several makers. One table.
We do not push one brand. Send your specification once and we price it across the makers available for your city.
01BNAL Prefabs Pvt LtdAEROCLAD - DG wall panel, 40–150 mm · AEROROOF roof panel, 30–100 mm02Kingspan JindalInsulated wall panels · Insulated roof panels03Lloyd InsulationsPUF / PIR wall and roof panels · Rockwool panels04Rinac IndiaPUF / PIR wall and ceiling panels · Roof panels05BeardsellPUF / PIR cold-room panels · Clean-room panels06Metecno IndiaPUF sandwich wall panels · PUF sandwich roof panels07Alfaa Panels (Alfaa PEB)Insulated sandwich panels · Cold-room panels08Everest IndustriesPre-engineered buildings · Insulated roof and wall panels (as part of building packages)
Compare brands in one quote
Transport extraFlashing as per your requirement
Panel rate per brand and lead time, side by side, for the makers that supply your city.
Skin steel from Tata BlueScope Steel and JSW (coated steel) can be specified on request. Independent multi-brand supplier. Brand names and trademarks belong to their respective owners; we are not an authorised dealer unless stated on the product.
Pick the skin, not just the core
Pre-painted steel (PPGI / PPGL), stainless steel and aluminium skins. Common shades shown; the exact list varies by brand.
Off-whiteRAL 9002 (typical)
Brilliant whiteRAL 9010 (typical)
Sky blueRAL 5012 (typical)
Silver metallicRAL 9006 (typical)
Stainless steel 304Food & pharma rooms
Embossed aluminiumStucco finish
On-screen colours are approximate. Ask for the maker’s shade card before you confirm the order.
Dispatched anywhere in India
We arrange dispatch from the chosen brand’s plant straight to your site, with accessories in the same lot. Transport is extra, at actuals, and quoted separately for your pincode.
Representative stock photoHow ordering works
From enquiry to your site
- 01
Enquiry
Send the panel type, thickness, size or area and your city. A phone call, the form or a calculator BOQ all work.
- 02
Quote comparing brands
You get the same specification from the brands available for your location, with the panel rate per brand. Transport is extra and quoted separately for your pincode.
- 03
Advance
Confirm the brand, cutting list and colour. An advance locks the production slot at the plant.
- 04
Dispatch
Panels are cut to length at the plant, protected with film and loaded to the agreed plan.
- 05
To your site
We arrange dispatch to your site anywhere in India, with accessories in the same lot. Transport is extra, at actuals. Erection guidance is available on request.
Panel calculator
How many panels does your room need?
Type the inside size of the cold room. Walls, ceiling, one door and 5% wastage are counted for you, with cam locks for the joints.
Thickness
Panel area to order
86.4m²
20wall panels, 3 m long
6ceiling panels, 4 m long
100cam locks
Panel rate per brandRate on request. Panel prices follow steel and chemical costs, so we quote fresh.Transport: extra, at actuals (quoted for your pincode)
Transport extraFlashing as per your requirement
Doors, sealant and L-angles too? Open the full calculator
Unit converter
Convert your site measurements
Measured the room in feet? Convert it to metres before you send it, and see the formula so you can check it by hand.
Feet to metresMetres = Feet × 0.3048
Square metres to square feetSq ft = m² × 10.7639
Panel thickness to inchesInches = mm ÷ 25.4
Feet
Metres
Formula
Metres = Feet × 0.3048
12 ft × 0.3048 = 3.658 m
1 ft = 0.3048 m (exact)
Key facts
PufPanel.in in brief
PufPanel.in is an independent multi-brand supplier of PUF and PIR insulated sandwich panels in India, a product of Agrimotion Engineering Private Limited (Firozabad, Uttar Pradesh). It quotes wall, roof, cold-room and clean-room panels from several makers in one comparison, with dispatch arranged across India (transport extra).
About us- What it is
- Independent multi-brand supplier of PUF and PIR insulated sandwich panels
- Who runs it
- Agrimotion Engineering Private Limited (GSTIN 09AAZCA0158R1ZP)
- Based in
- Sirsaganj, Firozabad, Uttar Pradesh, India
- Serves
- Buyers across India; dispatch arranged to site, transport extra
- Sells
- Continuous wall and roof panels, cam-lock cold-room wall and ceiling panels, PIR, clean-room, cold-storage and prefab cabin panels
- Typical range
- 30–200 mm thick, 1000–1200 mm cover width, cut to length up to ~12 m (typical; varies by brand)
- Pricing
- Panel rate per brand on request; transport extra, quoted per pincode; flashing as per your requirement
- Contact
- sales@pufpanel.in · +91 75795 67676
What is a PUF panel?
A PUF (polyurethane foam) sandwich panel is a rigid foam core bonded between two coated steel sheets. The foam insulates; the steel gives strength and a finished, cleanable surface. They are used for cold rooms, roofs, walls, clean rooms and prefab cabins.
PUF or PIR: which should I buy?
Both insulate about the same (k ≈ 0.022 W/mK). PIR behaves better in fire, so choose it when your insurer, client or consultant asks for it, or for large food and pharma buildings. PUF is the standard, lower-cost choice for most cold rooms and sheds.
Which thickness do I need?
Typical choices: 30–50 mm for ambient sheds and cabins, 80–100 mm for chillers (+2 to +8 °C), 120–150 mm for freezers (−18 to −25 °C) and 150–200 mm for blast freezers. See the thickness guide for the full chart.
Do you have a fixed price list?
For BNAL wall and roof panels, yes: our price board (/prices) shows BNAL’s North India list dated 06 Oct 2026, per sq m, ex-works, GST extra. For other brands and panel types, prices follow steel and chemical prices and change often, so we send today’s rate for your thickness, skin gauge, coating and quantity. Transport is extra and quoted separately.
Is transport included?
No. Panel rates are ex-works from the chosen brand’s plant; transport is extra and quoted separately for your pincode. We arrange it for you.
Are you a dealer of these brands?
We are an independent multi-brand supplier. We are not an authorised dealer of any brand unless the product says so. Brand names belong to their owners.
EnquiryGet today’s rate
Rates move with steel and chemical prices, so we quote fresh every time, with every available brand on one sheet. Transport is extra and quoted separately.
- A call back from our team
- The same spec priced across the brands available to you
- Panel rate per brand; transport extra, quoted for your pincode with the transit time
